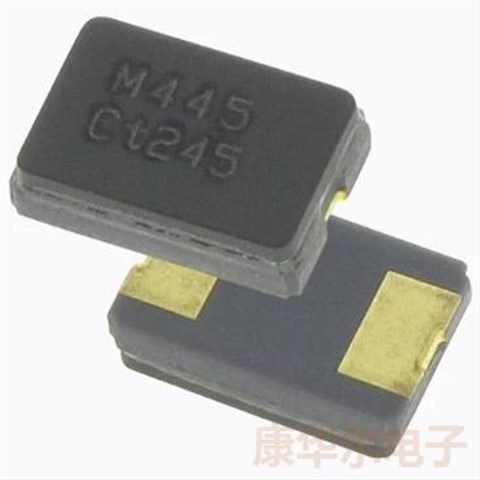

445A22A24M00000,陶瓷谐振器,CTS无源晶振,5032陶瓷晶体,进口贴片晶振,445晶体
| 型号名称Model name： | 445 | 品牌 brand ： | CTS/西迪斯 |
| 原厂型号Original model ： | 445A22A24M00000 | 尺寸size ： | 5.00mm x 3.20mm |
| 产品类型Product type： | 陶瓷谐振器 | 高度 Package Height： | 1.35mm |
| 频率frequency ： | 24MHz | 工作温度Operating Temperature ： | -10℃~60℃ |
| 频率公差Tolerance ： | ±20ppm | 等效串联电阻 ESR ： | 40 Ohms |
| 负载电容 Load capacitance ： | 10pF | 包装类型Packaging Type : | Tape/Reel |
| 产地Origin： | 欧美 | 制造商Manufacturer ： | CTS/西迪斯 |
| 安装方式Installation ： | Surface Mount | 最小包装数 MPQ ： | 1000 / reel |
445A22A24M00000,陶瓷谐振器,CTS无源晶振,5032陶瓷晶体,进口贴片晶振,445晶体
| 445A22A12M00000 | CTS/西迪斯 | 445 | MHz Crystal | 12MHz | ±20ppm | 10pF |
| 445A22A14M31818 | CTS/西迪斯 | 445 | MHz Crystal | 14.31818MHz | ±20ppm | 10pF |
| 445A22A20M00000 | CTS/西迪斯 | 445 | MHz Crystal | 20MHz | ±20ppm | 10pF |
| 445A22A24M00000 | CTS/西迪斯 | 445 | MHz Crystal | 24MHz | ±20ppm | 10pF |
| 445A22A24M57600 | CTS/西迪斯 | 445 | MHz Crystal | 24.576MHz | ±20ppm | 10pF |
| 445A22A25M00000 | CTS/西迪斯 | 445 | MHz Crystal | 25MHz | ±20ppm | 10pF |
| 445A22A27M00000 | CTS/西迪斯 | 445 | MHz Crystal | 27MHz | ±20ppm | 10pF |
| 445A22A30M00000 | CTS/西迪斯 | 445 | MHz Crystal | 30MHz | ±20ppm | 10pF |
| 445A22B12M00000 | CTS/西迪斯 | 445 | MHz Crystal | 12MHz | ±20ppm | 13pF |
| 445A22B14M31818 | CTS/西迪斯 | 445 | MHz Crystal | 14.31818MHz | ±20ppm | 13pF |
| 445A22B20M00000 | CTS/西迪斯 | 445 | MHz Crystal | 20MHz | ±20ppm | 13pF |
| 445A22B24M00000 | CTS/西迪斯 | 445 | MHz Crystal | 24MHz | ±20ppm | 13pF |
| 445A22B24M57600 | CTS/西迪斯 | 445 | MHz Crystal | 24.576MHz | ±20ppm | 13pF |
| 445A22B25M00000 | CTS/西迪斯 | 445 | MHz Crystal | 25MHz | ±20ppm | 13pF |
| 445A22B27M00000 | CTS/西迪斯 | 445 | CTS无源晶体 | 27MHz | ±20ppm | 13pF |
| 445A22B30M00000 | CTS/西迪斯 | 445 | MHz Crystal | 30MHz | ±20ppm | 13pF |
| 445A22C12M00000 | CTS/西迪斯 | 445 | MHz Crystal | 12MHz | ±20ppm | 16pF |
| 445A22C14M31818 | CTS/西迪斯 | 445 | MHz Crystal | 14.31818MHz | ±20ppm | 16pF |
| 445A22C20M00000 | CTS/西迪斯 | 445 | MHz Crystal | 20MHz | ±20ppm | 16pF |
| 445A22C24M00000 | CTS/西迪斯 | 445 | MHz Crystal | 24MHz | ±20ppm | 16pF |
| 445A22C24M57600 | CTS/西迪斯 | 445 | MHz Crystal | 24.576MHz | ±20ppm | 16pF |
| 445A22C25M00000 | CTS/西迪斯 | 445 | MHz Crystal | 25MHz | ±20ppm | 16pF |
| 445A22C27M00000 | CTS/西迪斯 | 445 | MHz Crystal | 27MHz | ±20ppm | 16pF |
| 445A22C30M00000 | CTS/西迪斯 | 445 | MHz Crystal | 30MHz | ±20ppm | 16pF |
| 445A22D12M00000 | CTS/西迪斯 | 445 | MHz Crystal | 12MHz | ±20ppm | 18pF |
| 445A22D14M31818 | CTS/西迪斯 | 445 | MHz Crystal | 14.31818MHz | ±20ppm | 18pF |
| 445A22D20M00000 | CTS/西迪斯 | 445 | MHz Crystal | 20MHz | ±20ppm | 18pF |
| 445A22D24M00000 | CTS/西迪斯 | 445 | MHz Crystal | 24MHz | ±20ppm | 18pF |
| 445A22D24M57600 | CTS/西迪斯 | 445 | MHz Crystal | 24.576MHz | ±20ppm | 18pF |
| 445A22D25M00000 | CTS/西迪斯 | 445 | MHz Crystal | 25MHz | ±20ppm | 18pF |
| 445A22D27M00000 | CTS/西迪斯 | 445 | MHz Crystal | 27MHz | ±20ppm | 18pF |
| 445A22D30M00000 | CTS/西迪斯 | 445 | MHz Crystal | 30MHz | ±20ppm | 18pF |
| 445A22E12M00000 | CTS/西迪斯 | 445 | MHz Crystal | 12MHz | ±20ppm | 20pF |
| 445A22E14M31818 | 欧美进口晶振 | 445 | MHz Crystal | 14.31818MHz | ±20ppm | 20pF |
| 445A22E20M00000 | CTS/西迪斯 | 445 | MHz Crystal | 20MHz | ±20ppm | 20pF |
| 445A22E24M00000 | CTS/西迪斯 | 445 | MHz Crystal | 24MHz | ±20ppm | 20pF |
| 445A22E24M57600 | CTS/西迪斯 | 445 | MHz Crystal | 24.576MHz | ±20ppm | 20pF |
| 445A22E25M00000 | CTS/西迪斯 | 445 | MHz Crystal | 25MHz | ±20ppm | 20pF |
| 445A22E27M00000 | CTS/西迪斯 | 445 | MHz Crystal | 27MHz | ±20ppm | 20pF |
