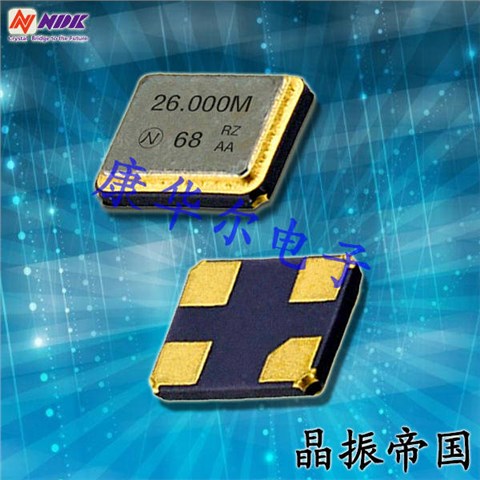

3225贴片晶振,NX3225SA-24MHz-STD-CQR-1,移动通信晶振,NDK有源晶振,NX3225SA晶振
| 规格 | 符号 | 值 | 单位 |
| 额定频率范围 | 12 ≤ F ≤ 64 | MHz | |

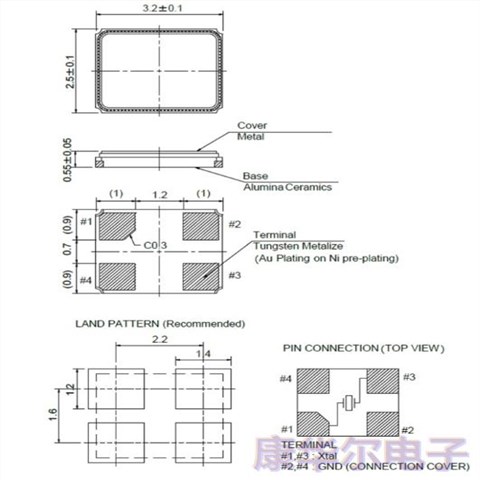

| 尺寸大小 (L×W×H) | - | 3.2×2.5×0.55 | mm |
| 泛波次数 | - | 基波 | - |
| 频率偏差 (25±3°C) (@ +25℃) | - | ±15 | ppm |
| 频率温度特性 (以25℃为基准) (refer to +25°C) | - | ±25 | ppm |
| 等效串联电阻 | - |
Max. 100 (12 ≤ F < 13MHz)
Max. 80 (13 ≤ F < 20MHz)
Max. 50 (20 ≤ F ≤ 64MHz)
|
Ω |
| 负载电容 | CL | 8 | pF |
| 驱动功率 | - | 10 (Max. 200) | μW |
| 工作温度范围 | Topr | -40 to +85 | ℃ |
| 储存温度范围 | Tstr | -40 to +85 | ℃ |
| 绝缘阻抗 | - | Min. 500 | MΩ |
| 气密性 | - | Max. 1.1ppb | Pa m3/s |
| 规格料号 | - | STD-CQR-1 | - |
3225贴片晶振,NX3225SA-24MHz-STD-CQR-1,移动通信晶振,NDK有源晶振,NX3225SA晶振
| NDK晶振 | 频率[MHz] | 规格编号 | 尺寸(LxW)[mm] | 工作温度[℃] | 频率容差[ppm] | 负载电容[pF] |
| NX3225SA | 12 | STD-CQR-1 | 3.2×2.5 | -40~+85 | ±15 | 8 (IEC) |
| NX3225SA | 13 | STD-CQR-1 | 3.2×2.5 | -40~+85 | ±15 | 8 (IEC) |
| NX3225SA | 13.56 | STD-CQR-1 | 3.2×2.5 | -40~+85 | ±15 | 8 (IEC) |
| NX3225SA | 16 | STD-CQR-1 | 3.2×2.5 | -40~+85 | ±15 | 8 (IEC) |
| NX3225SA | 16.384 | STD-CQR-1 | 3.2×2.5 | -40~+85 | ±15 | 8 (IEC) |
| NX3225SA | 20 | STD-CQR-1 | 3.2×2.5 | -40~+85 | ±15 | 8 (IEC) |
| NX3225SA | 22.579 | STD-CQR-1 | 3.2×2.5 | -40~+85 | ±15 | 8 (IEC) |
| NX3225SA | 24 | STD-CQR-1 | 3.2×2.5 | -40~+85 | ±15 | 8 (IEC) |
| NX3225SA | 24.305 | STD-CQR-1 | 3.2×2.5 | -40~+85 | ±15 | 8 (IEC) |
| NX3225SA晶振 | 25 | STD-CQR-1 | 3.2×2.5 | -40~+85 | ±15 | 8 (IEC) |
| NX3225SA | 26 | STD-CQR-1 | 3.2×2.5 | -40~+85 | ±15 | 8 (IEC) |
| NX3225SA | 27 | STD-CQR-1 | 3.2×2.5 | -40~+85 | ±15 | 8 (IEC) |
| NX3225SA | 27.12 | STD-CQR-1 | 3.2×2.5 | -40~+85 | ±15 | 8 (IEC) |
| NX3225SA | 28.63636 | STD-CQR-1 | 3.2×2.5 | -40~+85 | ±15 | 8 (IEC) |
| NX3225SA | 32 | STD-CQR-1 | 3.2×2.5 | -40~+85 | ±15 | 8 (IEC) |
| NX3225SA | 40 | STD-CQR-1 | 3.2×2.5 | -40~+85 | ±15 | 8 (IEC) |
| NX3225SA | 48 | STD-CQR-1 | 3.2×2.5 | -40~+85 | ±15 | 8 (IEC) |
| NX3225SA | 50 | STD-CQR-1 | 3.2×2.5 | -40~+85 | ±15 | 8 (IEC) |
| NX3225SA | 12 | STD-CQS-1 | 3.2×2.5 | -40~+125 | ±15 | 8 (IEC) |
| NX3225SA | 16 | STD-CQS-1 | 3.2×2.5 | -40~+125 | ±15 | 8 (IEC) |
| NX3225SA | 20 | STD-CQS-1 | 3.2×2.5 | -40~+125 | ±15 | 8 (IEC) |
| NX3225SA | 24 | STD-CQS-1 | 3.2×2.5 | -40~+125 | ±15 | 8 (IEC) |
| NX3225SA | 25 | STD-CQS-1 | 3.2×2.5 | -40~+125 | ±15 | 8 (IEC) |
| NX3225SA | 40 | STD-CQS-1 | 3.2×2.5 | -40~+125 | ±15 | 8 (IEC) |
| NX3225SA | 48 | STD-CQS-1 | 3.2×2.5 | -40~+125 | ±15 | 8 (IEC) |
| NX3225SA | 48 | STD-CQS-1 | 3.2×2.5 | -40~+125 | ±15 | 8 (IEC) |
