32.768K晶振,ECX-12R音叉晶体,进口时钟晶振,ECS-.327-12.5-12R-TR,伊西斯2012晶体

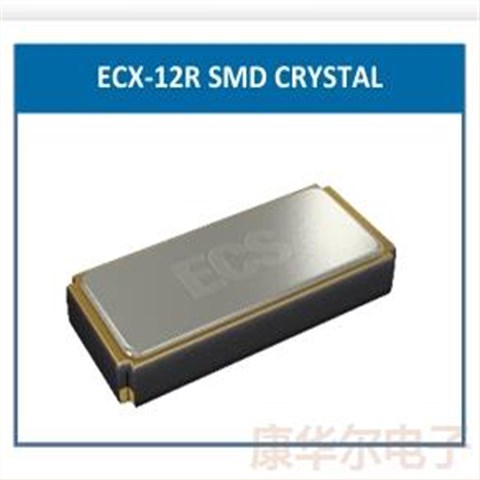

| 型号名称Model name： | ECX-12R | 品牌 brand ： | ECS晶振 |

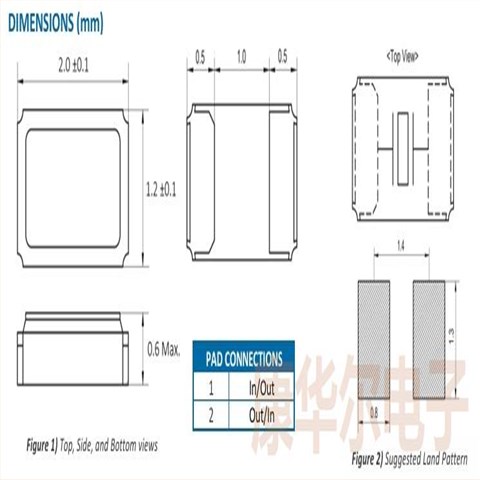

| 原厂型号Original model ： | ECS-.327-12.5-12R-TR | 尺寸size ： | 2.00mm x 1.20mm |
| 产品类型Product type： | 音叉晶体 | 高度 Package Height： | 0.60mm |
| 频率frequency ： | 32.768kHz | 工作温度Operating Temperature ： | -40℃~85℃ |
| 频率公差Tolerance ： | ±20ppm | 等效串联电阻 ESR ： | 70 kOhms |
| 负载电容 Load capacitance ： | 12.5pF | 包装/类型Packaging / Type : | Tape/Reel |
| 产地Origin： | 美国 | 制造商Manufacturer ： | 伊西斯 |
| 安装方式Installation ： | Surface Mount | 最小包装数 MPQ ： | 3000 pcs |
32.768K晶振,ECX-12R音叉晶体,进口时钟晶振,ECS-.327-12.5-12R-TR,伊西斯2012晶体
| ECS-.327-12.5-12R-TR | ECS | ECX-12R | kHz Crystal | 32.768kHz | ±20ppm | 12.5pF |
| ECS-.327-12.5-12-TR | ECS | ECX-12 | kHz Crystal | 32.768kHz | ±20ppm | 12.5pF |
| ECS-.327-7-12R-TR | ECS | ECX-12R | kHz Crystal | 32.768kHz | ±20ppm | 7pF |
| ECS-.327-6-12-C-TR | ECS | ECX-12 | kHz Crystal | 32.768kHz | ±10ppm | 6pF |
| ECS-.327-12.5-12-C-TR | ECS | ECX-12 | kHz Crystal | 32.768kHz | ±10ppm | 12.5pF |
| ECS-.327-6-12-TR | ECS | ECX-12 | kHz Crystal | 32.768kHz | ±20ppm | 6pF |
| ECS-.327-12.5-12QS-TR | ECS | ECX-12Q | kHz Crystal | 32.768kHz | ±20ppm | 12.5pF |
| ECS-.327-9-1210-TR | ECS | ECX-1210 | kHz Crystal | 32.768KHZ | ±20ppm | 9pF |
| ECS-.327-7-1210-TR | ECS | ECX-1210 | kHz Crystal | 32.768kHz | ±20ppm | 7pF |
| ECS-.327-12.5-1210-TR | ECS | ECX-1210 | kHz Crystal | 32.768kHz | ±20ppm | 12.5pF |
| ECS-.327-12.5-1210B-N-TR | ECS | ECX-1210B | kHz Crystal | 32.768kHz | ±20ppm | 12.5pF |
| ECS-.327-6-1210-TR | ECS | ECX-1210 | kHz Crystal | 32.768kHz | ±20ppm | 6pF |
| ECS-.327-12.5-12R-C-TR | ECS | ECX-12R | kHz Crystal | 32.768kHz | ±10ppm | 12.5pF |
| ECS-.327-9-12R-TR | ECS | ECX-12R | kHz Crystal | 32.768kHz | ±20ppm | 9pF |
| ECS-.327-6-12R-TR | ECS | ECX-12R | kHz Crystal | 32.768kHz | ±20ppm | 6pF |
| ECS-.327-7-12-TR | ECS | ECX-12 | kHz Crystal | 32.768kHz | ±20ppm | 7pF |
| ECS-.327-CDX-1082 | ECS | ECX-12 | kHz Crystal | 32.768kHz | ±20ppm | 4pF |
| ECS-.327-9-12R-C-TR | ECS | ECX-12R | kHz Crystal | 32.768kHz | ±10ppm | 9pF |
| ECS-.327-9-12-TR | ECS | ECX-12 | 2012贴片晶振 | 32.768kHz | ±20ppm | 9pF |
| ECX-.327-CDX-2096 | ECS | ECX-12R | kHz Crystal | 32.768kHz | ±5ppm | 12.5pF |
| ECS-.327-7-12-C-TR | ECS | ECX-12 | kHz Crystal | 32.768kHz | ±10ppm | 7pF |
| ECS-.327-9-12-C-TR | ECS | ECX-12 | kHz Crystal | 32.768kHz | ±10ppm | 9pF |
| ECS-.327-12.5-12QS-TR9 | ECS | ECX-12Q | kHz Crystal | 32.768kHz | ±20ppm | 12.5pF |
| ECS-.327-9-12QS-TR | ECS | ECX-12Q | kHz Crystal | 32.768kHz | ±20ppm | 9pF |
| ECS-.327-7-12QS-TR | ECS | ECX-12Q | kHz Crystal | 32.768kHz | ±20ppm | 7pF |
| ECS-.327-6-12RR-TR | ECS | ECX-12RR | kHz Crystal | 32.768kHz | ±20ppm | 6pF |
| ECS-.327-12.5-12RR-TR | ECS | ECX-12RR | kHz Crystal | 32.768kHz | ±20ppm | 12.5pF |
| ECS-.327-CDX-1074 | ECS | ECX-12 | kHz Crystal | 32.768kHz | ±20ppm | 9pF |
| ECS-.327-9-12RR-TR | ECS | ECX-12RR | kHz Crystal | 32.768kHz | ±20ppm | 9pF |
| ECS-.327-6-12-TR9 | ECS | ECX-12 | kHz Crystal | 32.768kHz | ±20ppm | 6pF |
| ECS-.327-CDX-1082-TR9 | ECS谐振器 | ECX-12 | kHz Crystal | 32.768kHz | ±20ppm | 4pF |
| ECS-.327-7-12-C-TR9 | ECS | ECX-12 | kHz Crystal | 32.768kHz | ±10ppm | 7pF |
| ECS-.327-6-1210B-N-TR | ECS | ECX-1210B | kHz Crystal | 32.768kHz | ±20ppm | 6pF |
| ECS-.327-12.5-12L-TR | ECS | ECX-12L | kHz Crystal | 32.768kHz | ±20ppm | 12.5pF |
