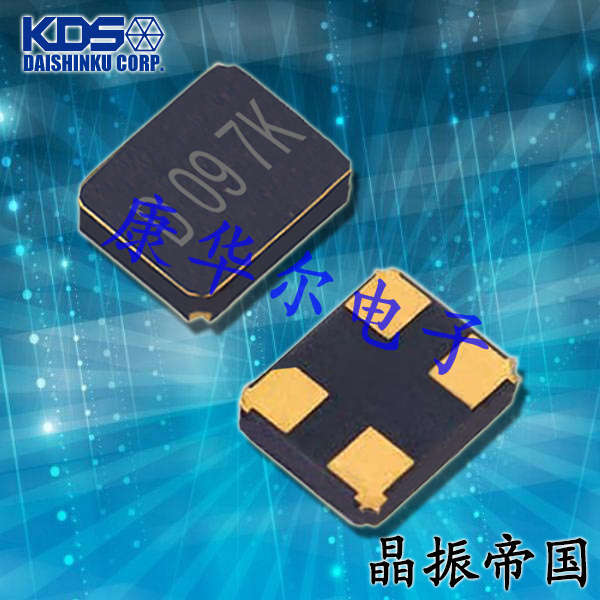

1C208000BC0R,DSX321G陶瓷晶振,KDS大真空晶振

原厂编码 Original model ：	1C208000BC0R
产品类型 Product type：	DSX321G
频率 frequency ：	8M
频率容差 frequencytolerance：	±20PPM
负载 Loadcapacitance：	12pF
工作温度 Operating Temperature ：	-40+85℃
尺寸 size ：	3225进口晶振
制造商 Manufacturer ：	KDS

订购热线：0755-27838351

1C208000BC0R,DSX321G陶瓷晶振,KDS大真空晶振

原厂编码 Original model ：	1C208000BC0R	型号名称 Model name：	DSX321G
产品类型 Product type：	无源晶振	品牌 brand ：	大真空晶振
频率 frequency ：	8M	产地 Origin：	日本进口晶振
频率容差 frequencytolerance：	±20ppm	高度 Package Height：	0.85mm
负载 Loadcapacitance：	12pF	脚位Termination：	4-pad
工作温度 Operating Temperature ：	-40+85℃	包装/类型 Packaging / Type :	4-Smd
尺寸 size ：	3225mm	最小包装数 MPQ ：	3000 /reel
制造商 Manufacturer ：	KDS	安装方式 Installation ：	Surface Mount

1C208000BC0R,DSX321G陶瓷晶振,KDS大真空晶振

Q22FA23V00205	3.2 x 2.5 x 0.7mm	FA-238V	14.745600 MHz	8 pF
Q22FA23V00210	3.2 x 2.5 x 0.7mm	FA-238V	14.745600 MHz	18 pF
Q22FA23V00233	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	10 pF
Q22FA23V00235	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	9 pF
Q22FA23V00239	3.2 x 2.5 x 0.7mm	FA-238V	14.318000 MHz	10 pF
Q22FA23V00241	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	10 pF
Q22FA23V00245	3.2 x 2.5 x 0.7mm	FA-238V	14.318000 MHz	16 pF
Q22FA23V00247	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	10 pF
Q22FA23V00255	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	12 pF
Q22FA23V00266	3.2 x 2.5 x 0.7mm	FA-238V	13.560000 MHz	16 pF
Q22FA23V00268	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	16 pF
Q22FA23V00279	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	18 pF
Q22FA23V00291	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	12 pF
Q22FA23V00307	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	8 pF
Q22FA23V00310	3.2 x 2.5 x 0.7mm	FA-238V	14.318000 MHz	20 pF
Q22FA23V00314	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	10 pF
Q22FA23V00326	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	12 pF
Q22FA23V00327	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	12 pF
Q22FA23V00332	3.2 x 2.5 x 0.7mm	FA-238V	14.745600 MHz	18 pF
Q22FA23V00358	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	7 pF
Q22FA23V00367	3.2 x 2.5 x 0.7mm	FA-238V	14.318000 MHz	9 pF
Q22FA23V00372	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	18 pF
Q22FA23V00373	3.2 x 2.5 x 0.7mm	FA-238V	14.745600 MHz	16 pF
Q22FA23V00374	3.2 x 2.5 x 0.7mm	FA-238V	13.560000 MHz	9 pF
Q22FA23V00375	3.2 x 2.5 x 0.7mm	FA-238V	12.800000 MHz	15 pF
Q22FA23V00379	3.2 x 2.5 x 0.7mm	FA-238V	13.300000 MHz	10 pF
Q22FA23V00380	3.2 x 2.5 x 0.7mm	FA-238V	12.993000 MHz	10 pF
Q22FA23V00385	3.2 x 2.5 x 0.7mm	FA-238V	12.800000 MHz	15 pF
Q22FA23V00396	3.2 x 2.5 x 0.7mm	FA-238V	14.745600 MHz	7 pF
Q22FA23V00397	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	12 pF
Q22FA23V00400	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	12 pF
Q22FA23V00401	3.2 x 2.5 x 0.7mm	FA-238V	13.500000 MHz	10 pF
Q22FA23V00419	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	15 pF
Q22FA23V00425	3.2 x 2.5 x 0.7mm	FA-238V	12.500000 MHz	7 pF
Q22FA23V00426	3.2 x 2.5 x 0.7mm	FA-238V	14.745600 MHz	10 pF
Q22FA23V00431	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	8 pF
Q22FA23V00432	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	22 pF
Q22FA23V00434	3.2 x 2.5 x 0.7mm	FA-238V	12.800000 MHz	15 pF
Q22FA23V00436	3.2 x 2.5 x 0.7mm	FA-238V	13.000000 MHz	13 pF
Q22FA23V00437	3.2 x 2.5 x 0.7mm	FA-238V	12.300000 MHz	10 pF
Q22FA23V00439	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	18 pF
Q22FA23V00441	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	12 pF
Q22FA23V00448	3.2 x 2.5 x 0.7mm	FA-238V	13.333000 MHz	7 pF
Q22FA23V00451	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	10 pF
Q22FA23V00452	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	7 pF
Q22FA23V00459	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	12 pF
Q22FA23V00465	3.2 x 2.5 x 0.7mm	FA-238V	14.318000 MHz	33 pF
Q22FA23V00467	3.2 x 2.5 x 0.7mm	FA-238V	12.500000 MHz	16 pF
Q22FA23V00477	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	12 pF
Q22FA23V00481	3.2 x 2.5 x 0.7mm	FA-238V	14.920000 MHz	10 pF
Q22FA23V00482	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	12.5 pF
Q22FA23V00484	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	18 pF
Q22FA23V00485	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	12 pF
Q22FA23V00486	3.2 x 2.5 x 0.7mm	FA-238V	14.745600 MHz	10 pF
Q22FA23V00498	3.2 x 2.5 x 0.7mm	FA-238V	13.333000 MHz	12 pF
Q22FA23V00504	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	8 pF
Q22FA23V00505	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	8 pF
Q22FA23V00513	3.2 x 2.5 x 0.7mm	FA-238V	15.980000 MHz	8 pF
Q22FA23V00519	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	22 pF
Q22FA23V00521	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	20 pF
